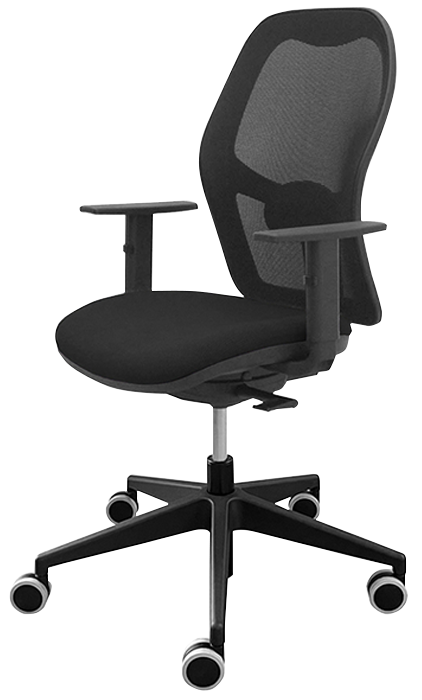

Sedie operative: Diana-rete

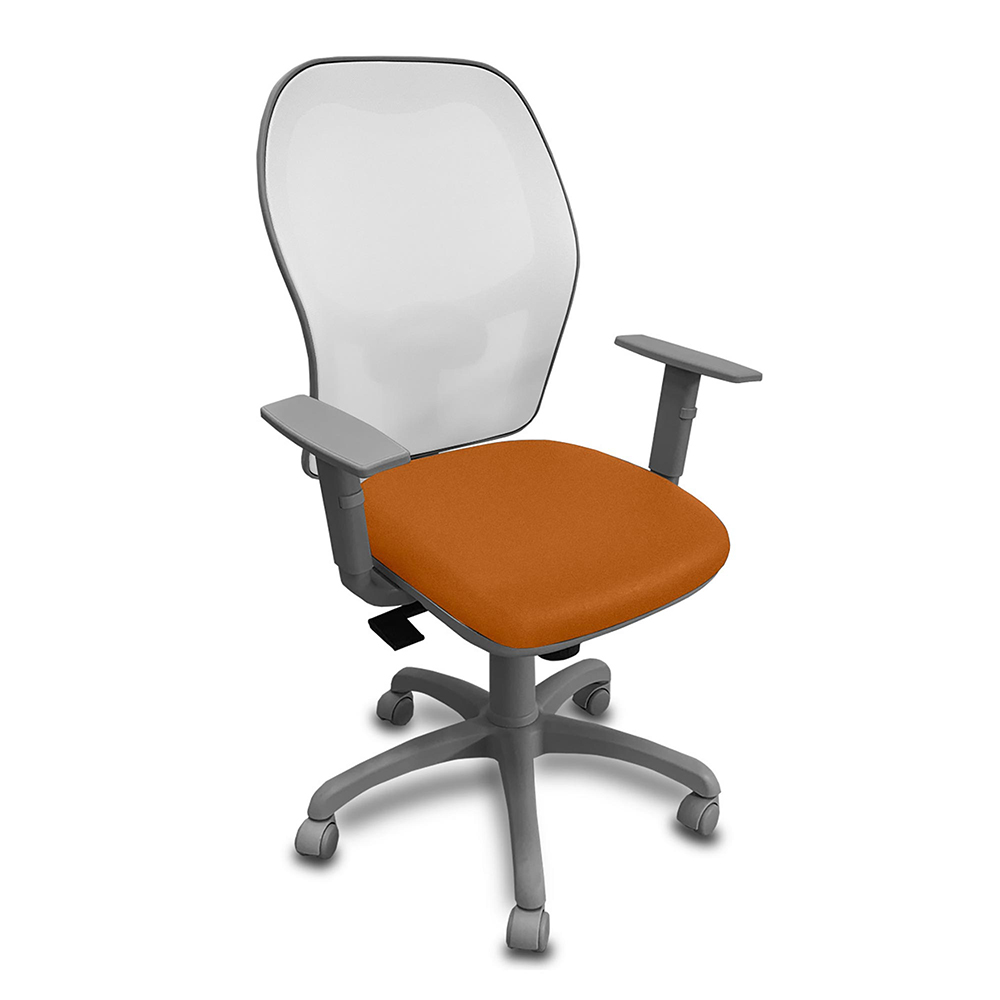

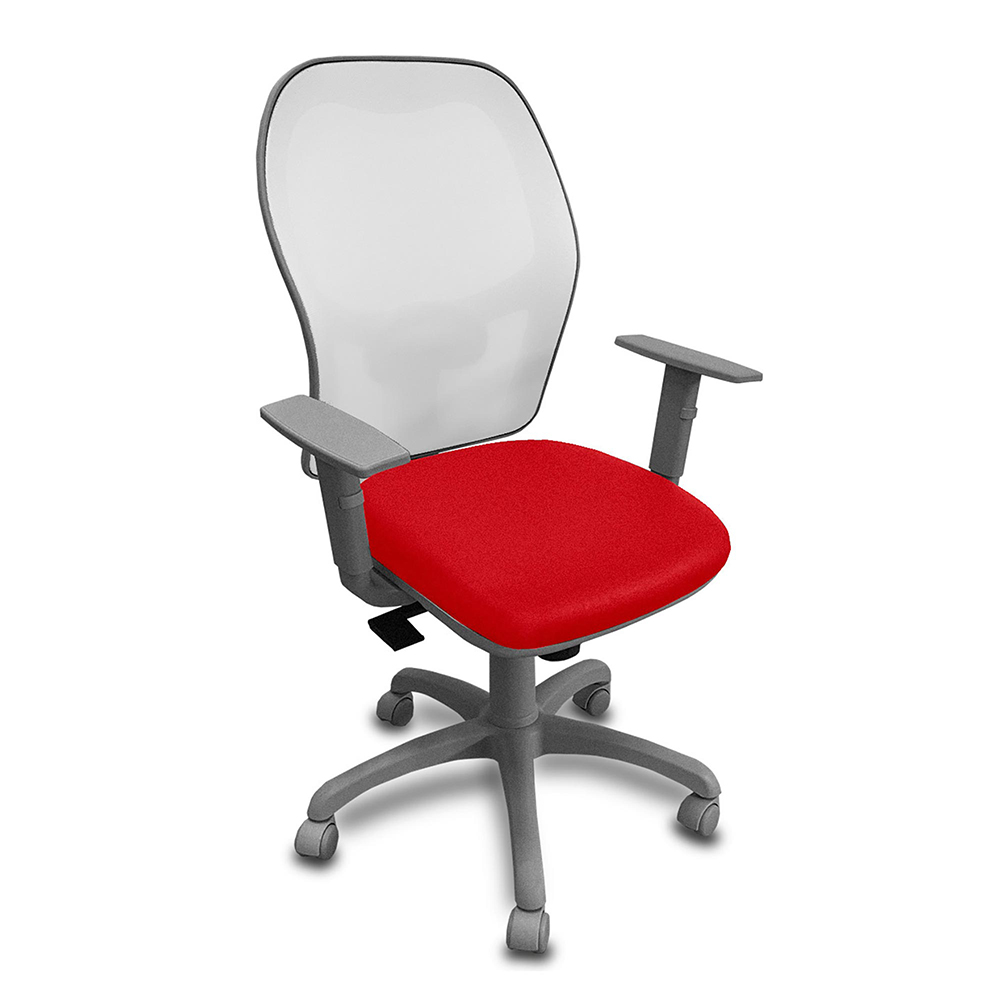

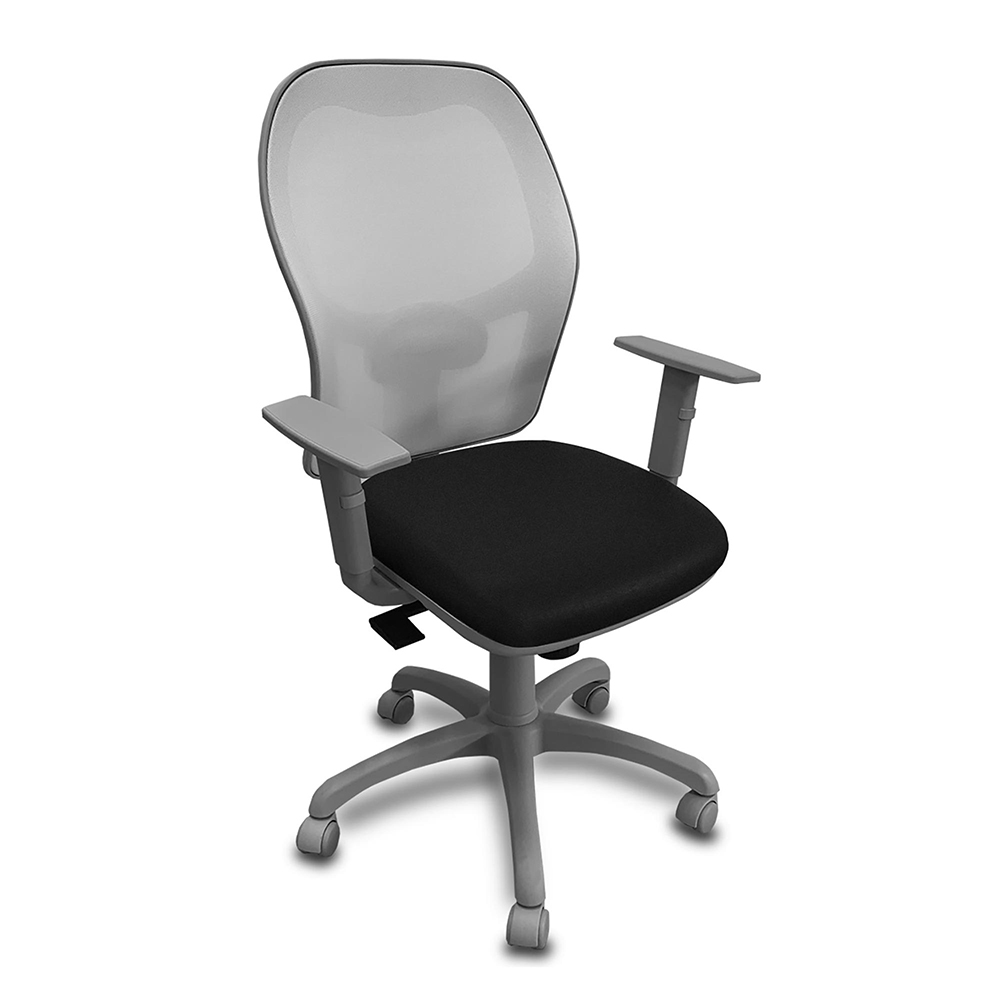

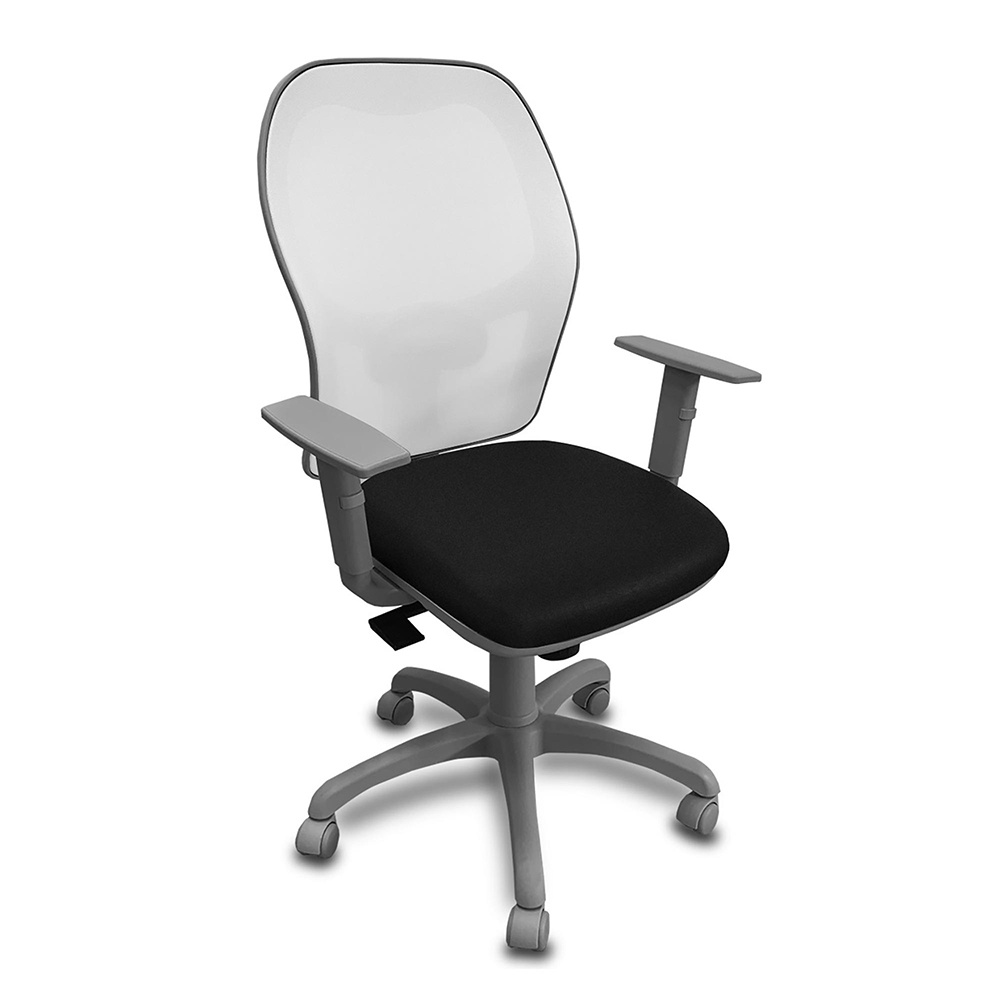

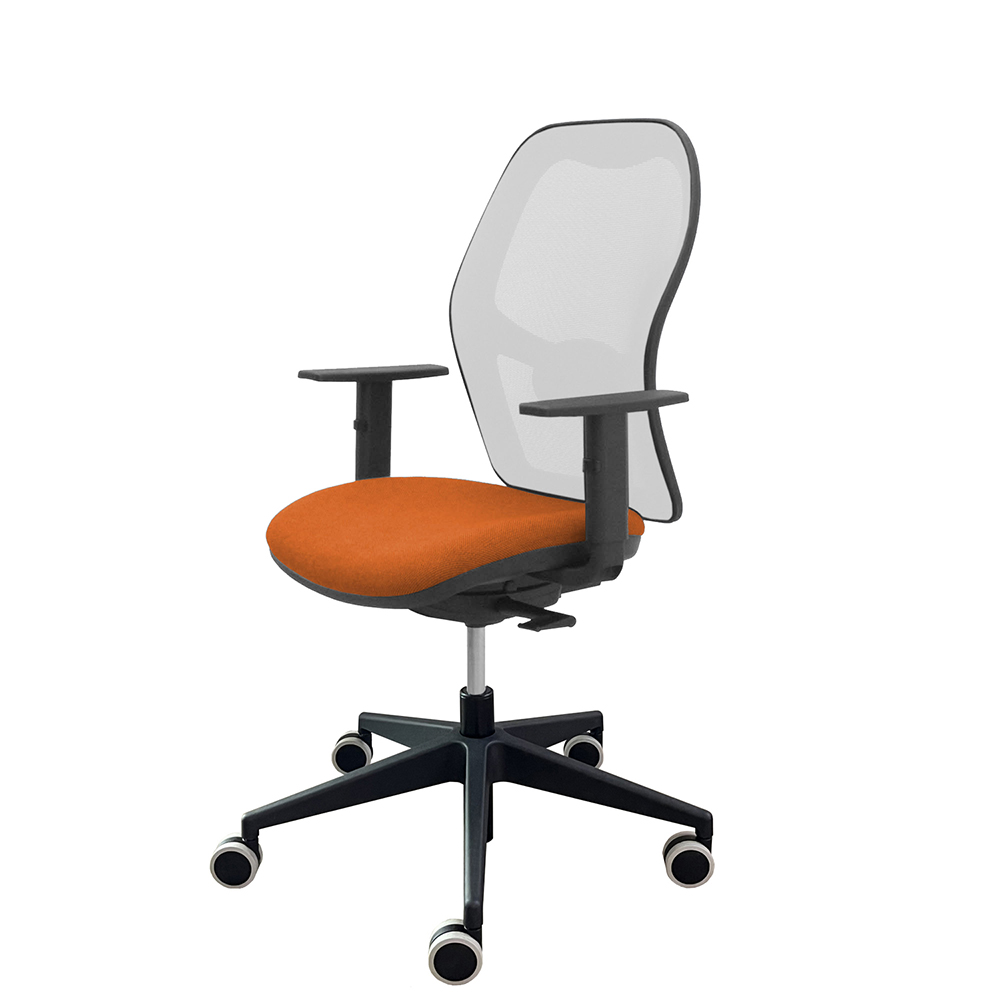

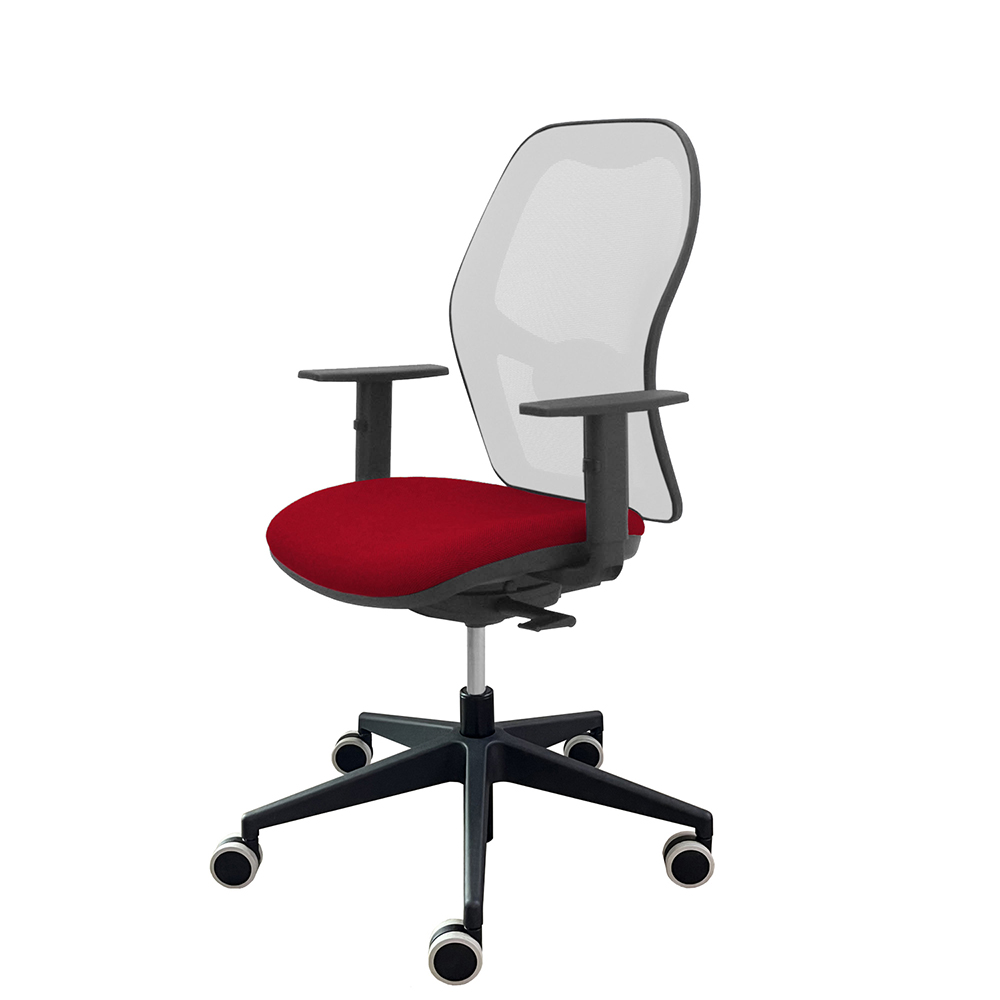

Diana

Task chair with height adjustable T-shaped armrests.
Mesh backrest in different finishes equipped with lumbar support.
Dimensions: W69 D69 H103/114 cm
Seat dimensions: W49 D46.

BASE: Swivel base in black nylon diameter 690 mm, with 5 spokes, equipped with bicolor nylon castors diameter mm. 50. Possibility to replace the base and the castors with chromed or aluminium version.

BACKREST: Frame made of black shockproof plastic. The backrest is equipped with built-in lumbar support, adjustable in height.

SEAT: Bearing structure made of multilayer beechwood 12 mm thick, covered with shape retaining expanded polyurethane 45 mm thick and with density 30 kg/m3.

MECHANISMS: Mechanism with synchronous movement seat-backrest, lockable in all positions. The mechanism allows the adjustment of the intensity of the tension and is equipped with locking lever and Synchro release with anti-shock system.

ARMRESTS: Height adjustable "T" armrest in black polypropylene.

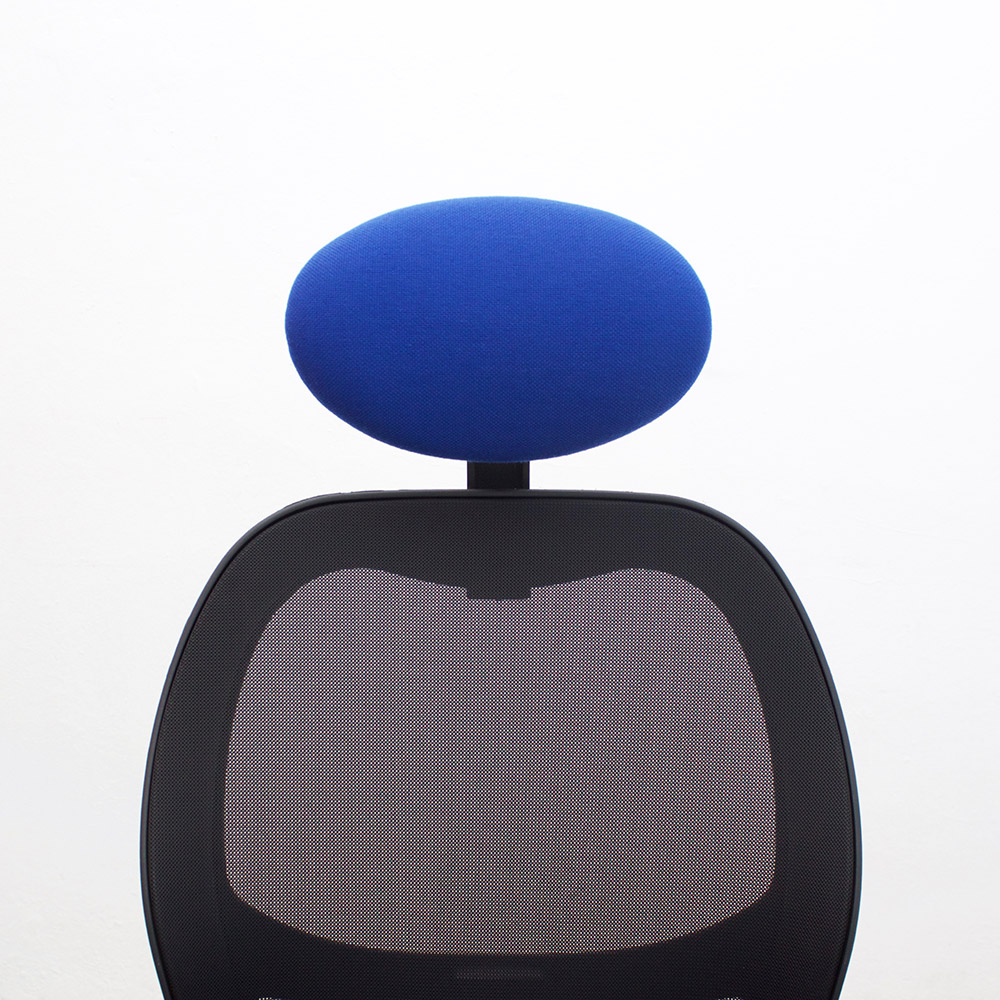

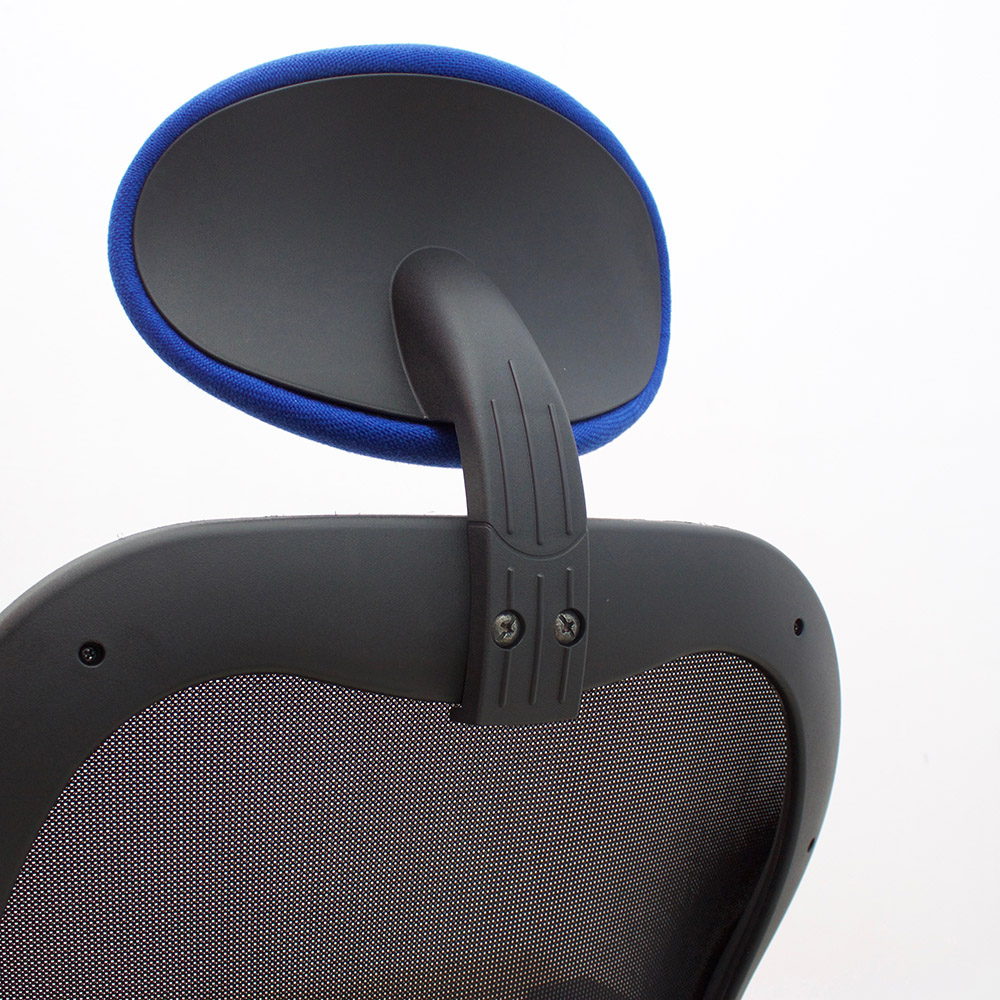

ACCESSORIES: Optional headrest, covered with the same material as the seat.

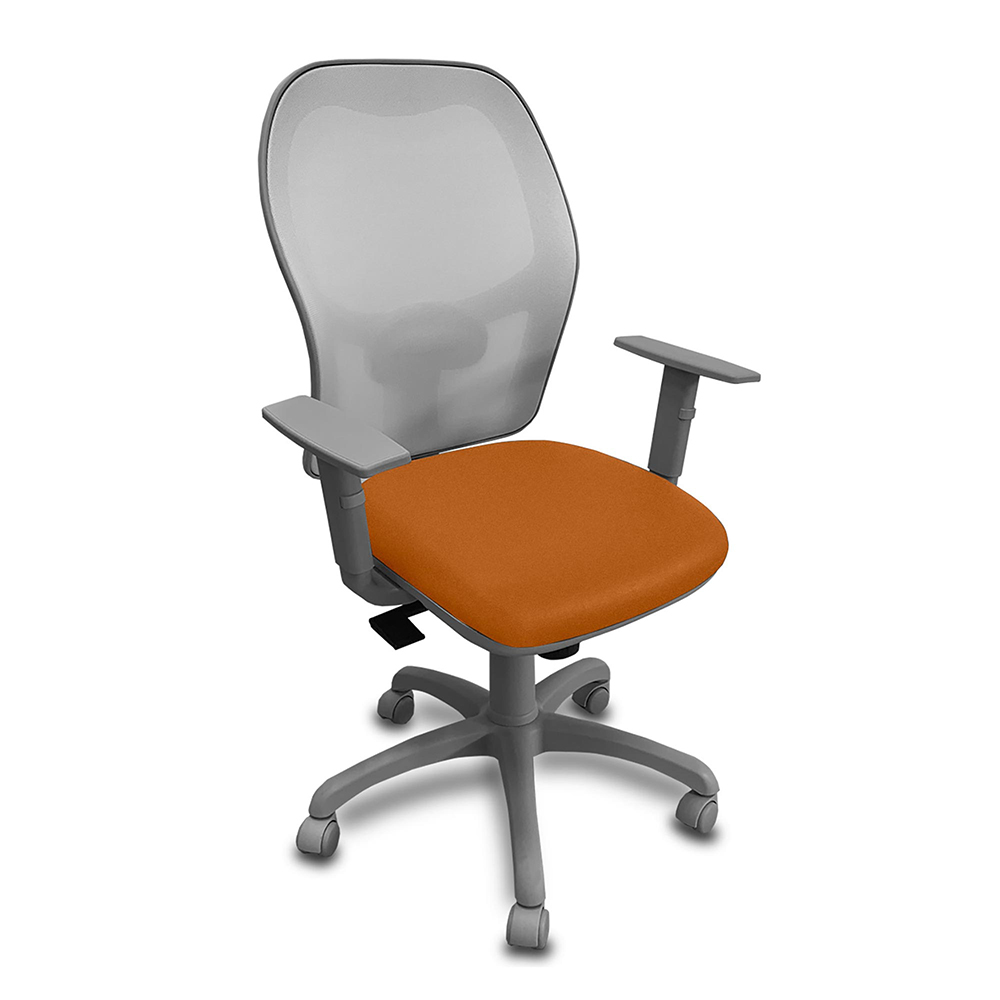

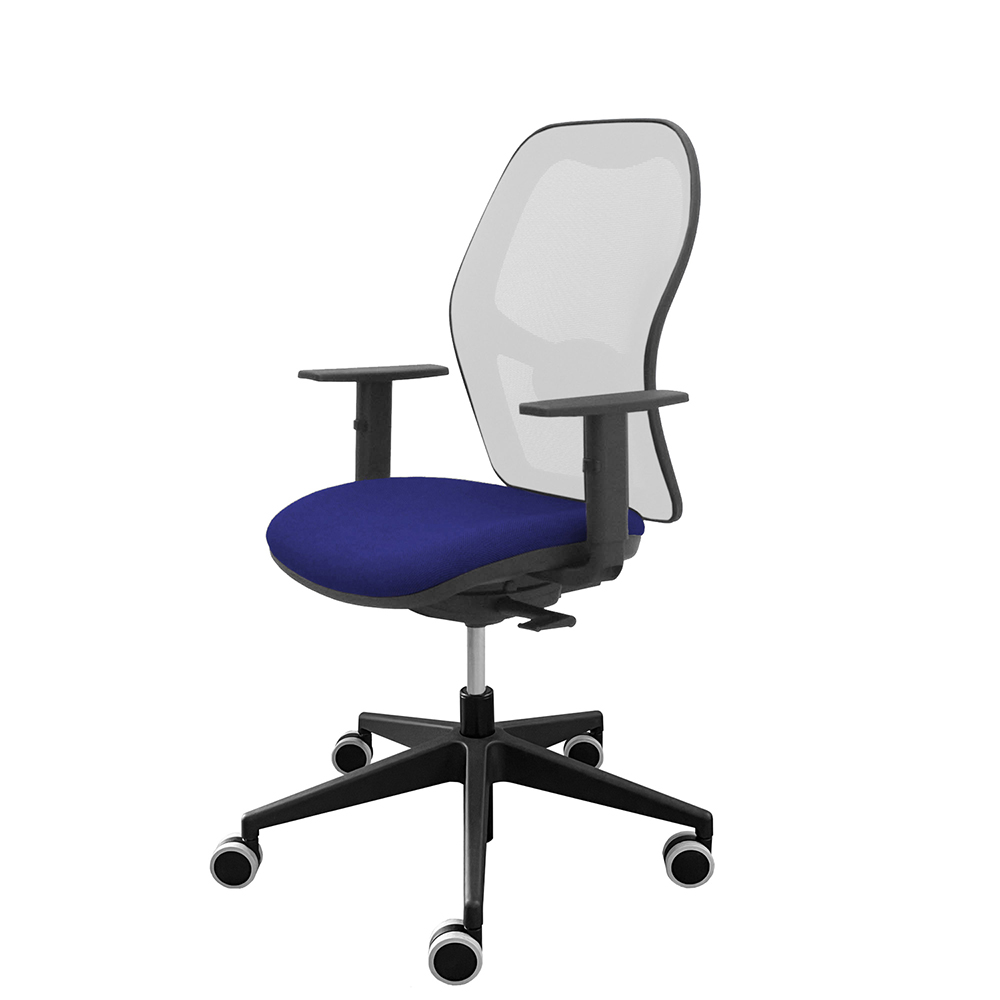

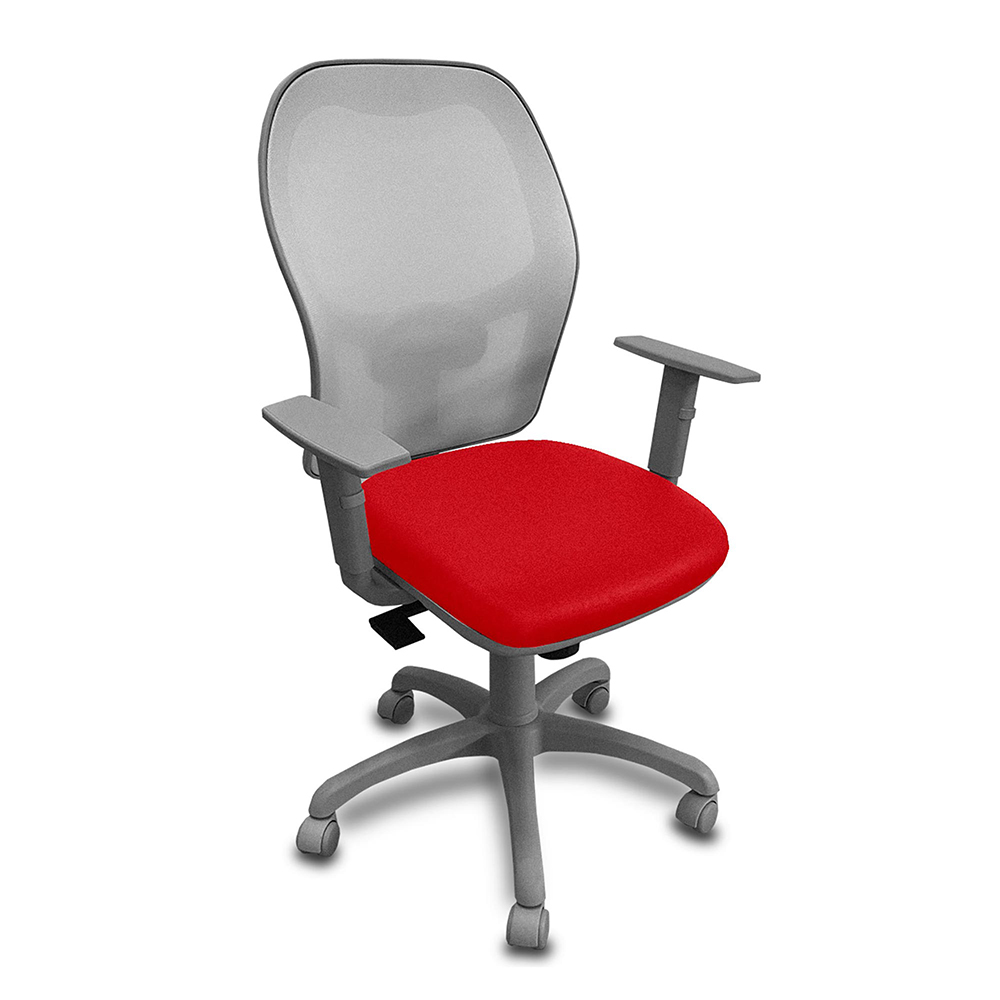

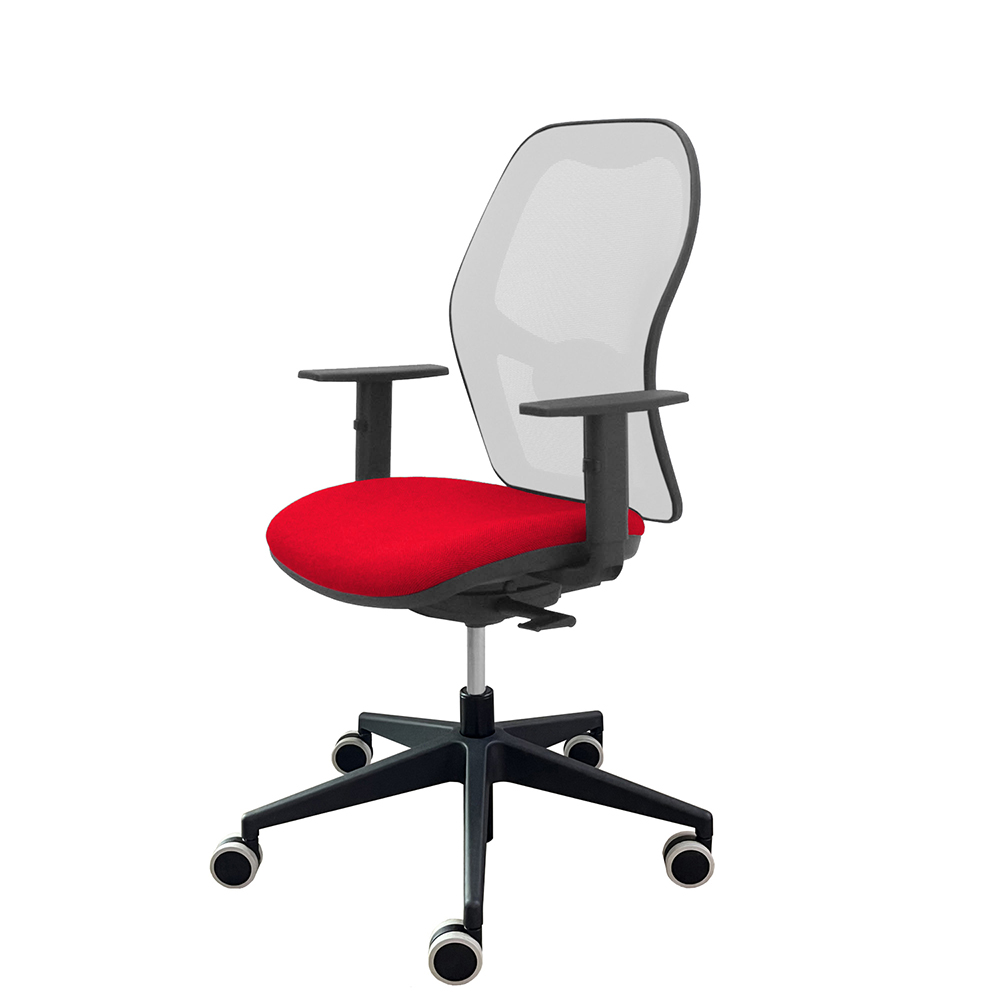

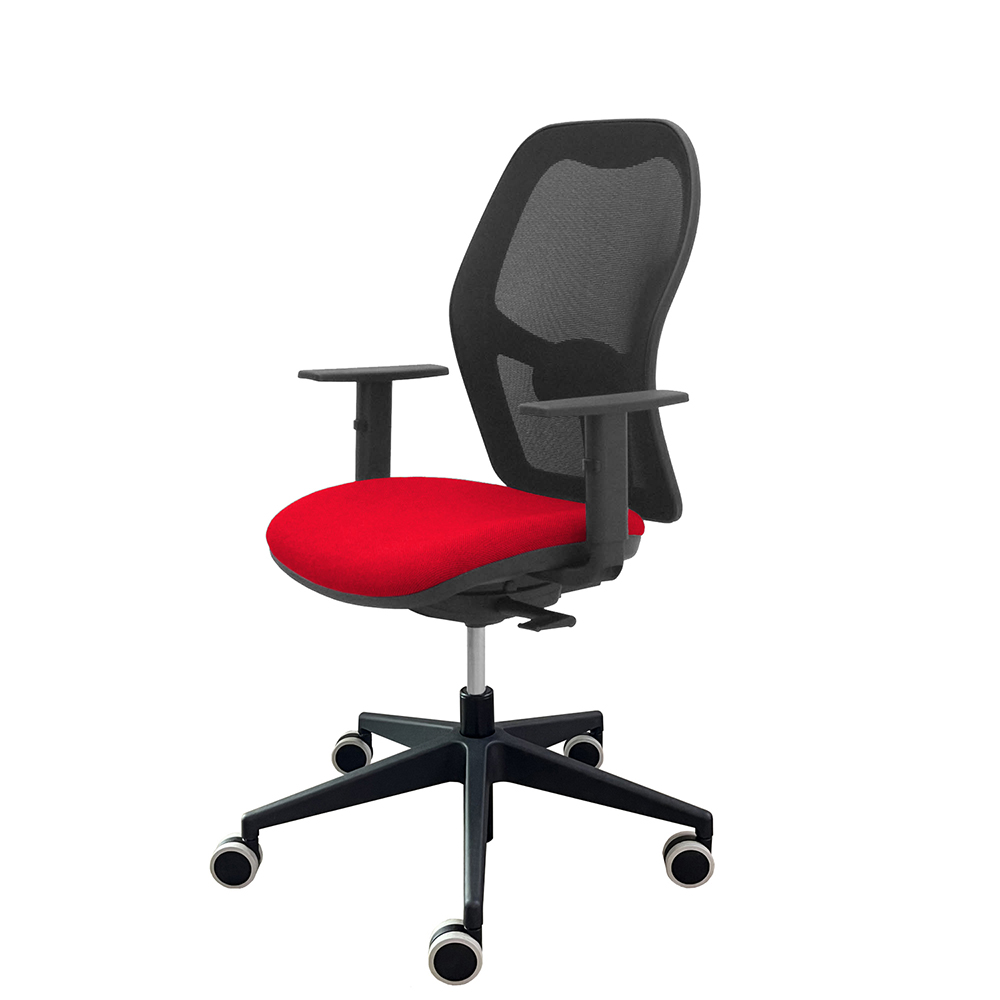

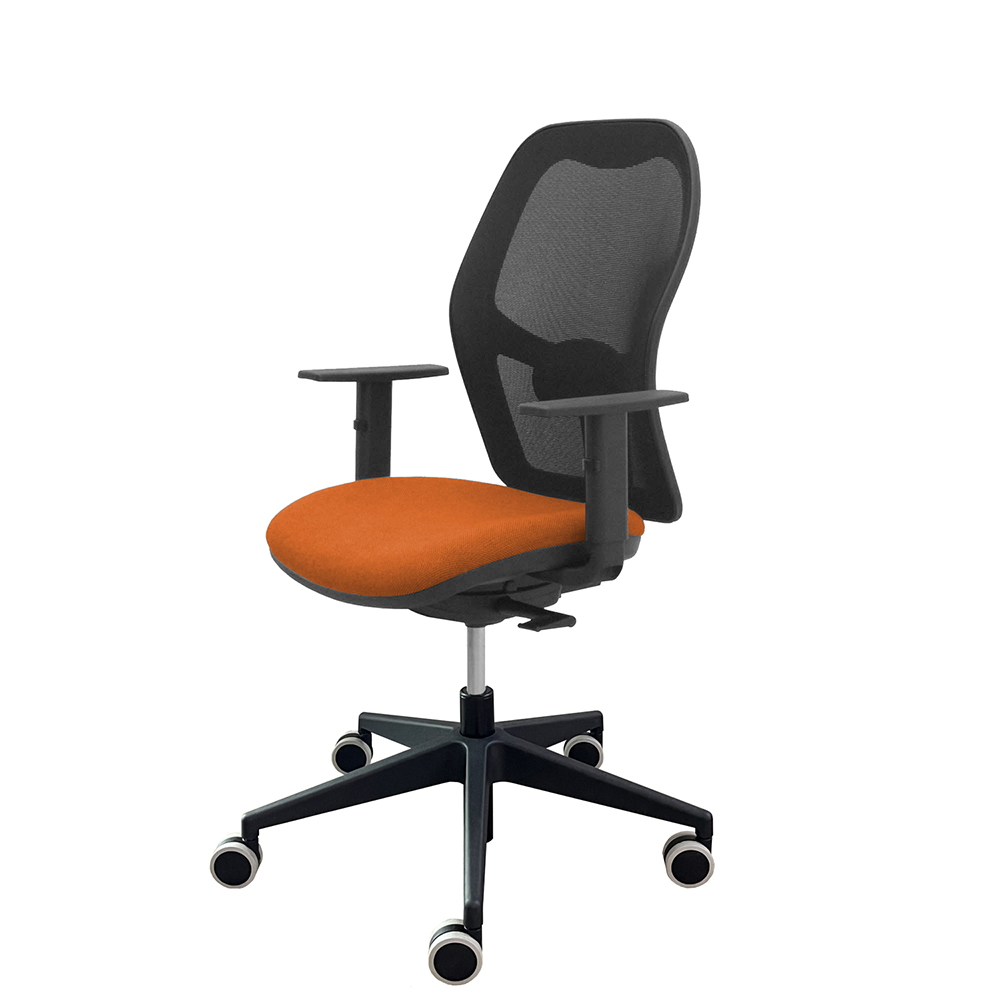

COVERINGS: Mesh backrest in 7 colors: orange, white, bluette, grey, black, red, green. Seat covered in acrylic, fireproof fabric, peltex, fireproof eco-leather, renna and microfibre.
